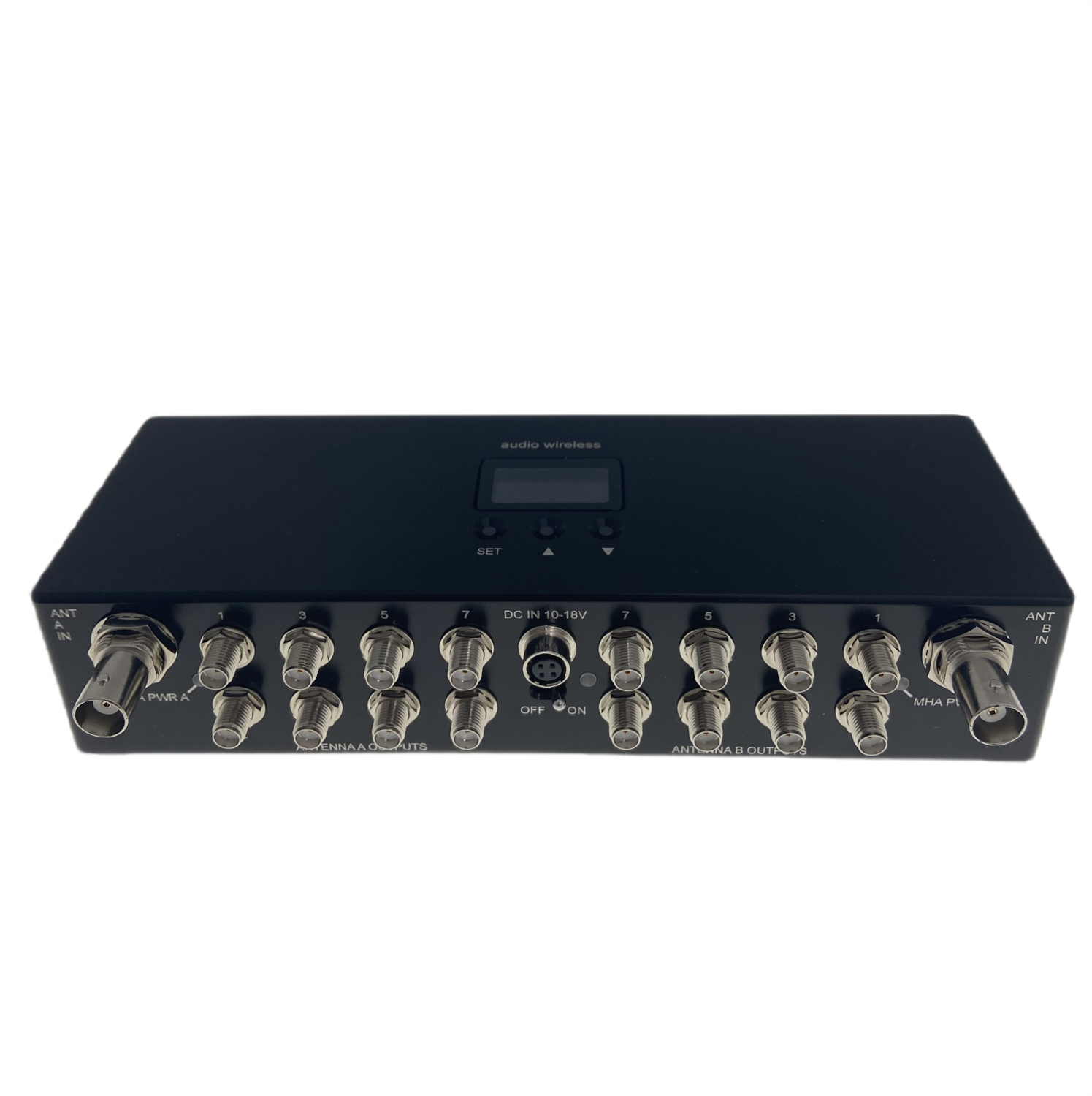

8-WAY Diversity Antenna and DC Distribution Module - DADM228-P (IN STOCK)
Product Details
Brand:
AUDIO WIRELESS
Protect the receivers against unwanted interfering RF signals through the filtered design.
DADM228-P is a custom design that offers a Diversity Antenna and a DC power distribution solution for portable sound bags or sound carts.
KEY FEATURES:
- One pair of antenna feeds up to eight diversity receivers
- Built-in band-pass filtering and signal splitters
- User adjustable gain +6dB to -10dB
- Remote antenna powering
- 6 x Hirose DC outputs
- Industry standard connectors
- Intuitive OLED display menu and LED indicators
- Single power source solution
- Master ON-OFF switch
- Continuous system volts monitoring
- Soft ON/OFF switch for each individual Remote Antenna powering
- Soft ON/OFF switch for each Hirose DC output
- CNC-machined aluminium custom design, lightweight and rugged - fits neatly in any sound bag and sound cart
Diversity Antenna Distribution Module DADM228-P is a custom design that provides solutions for antenna and power distribution needs in portable sound bag and sound trolley applications. It is designed with an emphasis on weight and size without compromising performance.
The DADM228-P is an active antenna distribution system featuring 2 inputs and 16 outputs with built-in band-pass filtering. This device eliminates the need for multiple receiver antennas and offers a neat solution for sound bags, enhancing RF performance.
The DADM228-P is capable of handling very high input signals while maintaining a low noise figure. It also delivers exceptional intermodulation performance compared to other low-power devices on the market.
The system box provides adjustable gain ranging from +6 dB to -10 dB in 1 dB increments, allowing users to tailor it for specific applications. This flexibility in gain adjustment helps optimise the RF gain budget for digital, hybrid, and analogue receivers.
It features two industry-standard BNC input connectors for antenna inputs, which support the use of standard low-loss RF extension cables. Additionally, there are 16 mini-RF SMA connectors that connect to the diversity receivers.
For applications requiring remote antenna powering, the DADM provides switchable MHA powering, with RED LEDs indicating the power ON/OFF status. This MHA powering can be activated or deactivated through the OLED display menu.
The antenna inputs incorporate a very low-loss, highly selective band-pass filter design that effectively rejects unwanted frequencies both below and above the tuning bandwidth.
The DADM operates with an external power supply of 10-18Vdc. It features an industry-standard 4-pin Hirose connector, a green LED that indicates the power-on status of the system box, and an OLED display that continuously shows the DC input voltage.
The DC distribution features six Hirose DC output connectors for powering auxiliary equipment in any sound bag. Each DC output port can be individually turned ON or OFF through the OLED menu.
Wireless diversity antenna systems and DC power distribution systems are now the preferred choice among freelance sound engineers, hiring companies, and major broadcasters for all wireless microphone applications.
| RF Distribution Section | |
| Frequency Range | 470 to 1164MHz(in bands) |
| Input Impedance | 50 Ω |
| Output Impedance | 50 Ω |
| Gain (each output) | +6 dB to -10dB, user adjustable |
| Current Consumption | 135mA |
| UHF Bandpass Type | |
| Available Bandwidths | 470-700MHz, 470-608MHz, 470-960MHz, 470-1164MHz (Covers UK DME BAND) |
| OIP3 | > +41dBm |
| Port-to-port isolation | > 20dB (min.) |
| Noise figure | < 3 dB |
| Connections | |
| RF Inputs | 2 x 50 Ω Standard BNC Sockets |
| RF Outputs | 2 x 8 x 50 Ω mini UHF SMA sockets |
| Main ON/OFF Switch | Master switch |
| DC Power OUT | 6 x 4-pin Hirose sockets individually fused and protected against reverse polarity, standard pin-outs, Pin1(-ve) and Pin4(+ve) |
| Powering | |
| External Power | 10-18V dc |
| Remote Antenna Powering | Switchable DC T-bias powering, 12Vdc @ 200mA max, regulated for active antenna powering, short circuit protected |
| Hirose DC output | Unregulated incoming volts, switched, individually fused and protected against reverse polarity. Outer |
| ter Case | |
| Dimensions | 192x42x64mm (W x H x D) |
| Weight | 465g |
| Related Accessories | SMA to SMA link cables (custom lengths) 1 x LPDA-DIV 2 x LPDA-P 2 x LPDA-A-WB 2 x LPDA-A-DT V2 |
updated on 25.05.2026
![DIGITALLY TUNED MULTI-BAND - DADM226-MK2-MB 6-WAY Diversity Antenna Distribution System [IN STOCK]](https://d2j6dbq0eux0bg.cloudfront.net/images/12000241/products/364541162/5499136535.png "DIGITALLY TUNED MULTI-BAND - DADM226-MK2-MB 6-WAY Diversity Antenna Distribution System [IN STOCK]")

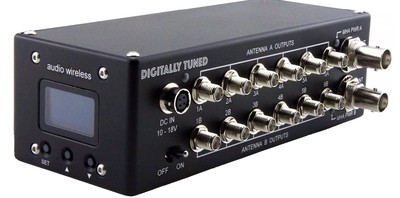

![AW Digitally Tuned Diversity Antenna Distribution Module [DADM226-DT V2] (IN STOCK)](https://d2j6dbq0eux0bg.cloudfront.net/images/12000241/products/137689118/1064434525.jpg "AW Digitally Tuned Diversity Antenna Distribution Module [DADM226-DT V2] (IN STOCK)")
