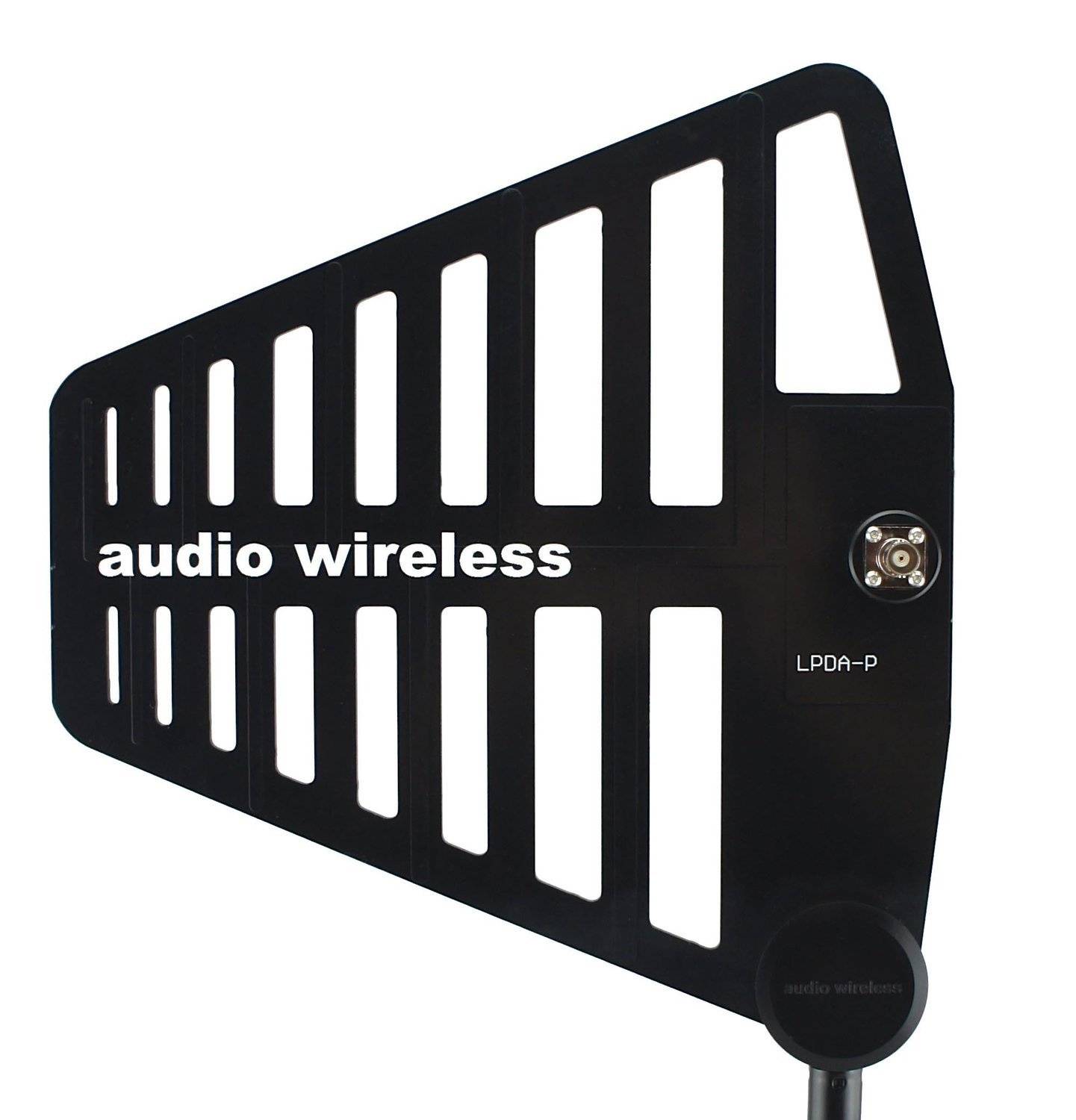

LPDA-P High Gain Passive Antenna 470-1525MHz

The Audio Wireless LPDA-P (Log Periodic Dipole Array - Passive) antenna is designed to operate over a very wide frequency range, spanning from 470 to 1525 MHz, with an impressive SWR of less than 2 throughout the entire operational range.

LPDA-P can enhance reception when used with Radio Mic receivers or function as a low-power transmit antenna, boosting output power by up to 6dB.

The LPDA-P is suitable for applications requiring greater distance between the transmitter and the receiver, such as in filmmaking, documentaries, studios, theatres, and more.

The LPDA-P is designed as a paddle-style antenna using a multi-layer PCB technique to ensure reliability. It is suitable for both portable applications and fixed installations, whether indoors or outdoors. This antenna is compatible with any UHF wireless receiving system and offers a directional coverage pattern. Additionally, it can achieve a 6 dB improvement in RF gain compared to standard receiver monopole antennas.

The antennas are made using an advanced multi-layer PCB design technique with copper-clad epoxy fibreglass, ensuring durability and consistent performance in harsh environments.
