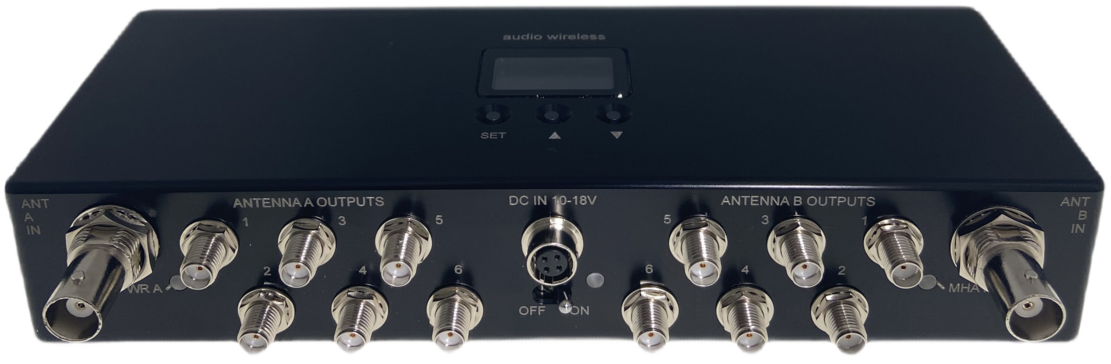

DIGITALLY TUNED ULTRA WIBE-BAND Antenna Distribution System DADM226-UWB - 470-1045MHz [IN STOCK]

Pre-programmed Frequency Bands 470-1045MHz:

BAND No:	FREQUENCY RANGE:	BAND No:	FREQUENCY RANGE:	BAND No:	FREQUENCY RANGE:
1	470-608MHz	6	520-700MHz	11	470-865MHz
2	470-663MHz	7	550-608MHz	12	470-960MHz
3	470-700MHz	8	550-663MHz	13	510-960MHz
4	510-608MHz	9	550-700MHz	14	550-960MHz
5	510-663MHz	10	470-832MHz	15	520-1045MHz

KEY FEATURES:

• One pair of antennae feeds up to six diversity receivers
• 15 User - selectable - Pre-programmed band-pass filtering, covering the UK part of the UK DME band
• User-adjustable system gain +5dB to -10dB
• Remote Active antenna powering
• DC Distribution - 6 x Hirose dc output ports
• Industry-standard connectors
• Intuitive OLED display menu and LED indicators
• Single power source solution
• Master ON-OFF switch
• Continuous system volts monitoring
• Soft ON/OFF switch for each individual Remote Active Antenna powering
• Soft ON/OFF switch for each Hirose DC output
• CNC-machined aluminium custom design, lightweight and rugged – fits neatly in any sound bag

The DADM226-UWB is an active antenna distribution system designed for Ultra-Wide-Band (UWB) applications. It features 15 selectable band-pass filters, providing coverage across a frequency range of 470-1045 MHz. This selective band-pass filtering effectively rejects out-of-band unwanted RF signals, ensuring better protection for the receivers.

The antenna inputs utilise BNC connectors, allowing the use of standard low-loss RF extension cables. The outputs consist of 12 mini-RF SMA connectors that feed the diversity receivers.

For applications requiring remote antenna power, the DADM offers user-switchable Mast-Head Amplifier (MHA) power, with red LEDs indicating the ON/OFF status. Power can be activated through the OLED display menu.

The DADM226-UWB has a very high input signal handling capacity with an exceptionally low noise figure and shows remarkable inter-modulation performance compared to other available low-power devices.

The tuning bandwidth can be selected by the user from a choice of 15 pre-programmed bands, allowing for adaptation to different applications and geographical locations. Additionally, the system gain is adjustable in 1dB increments, ranging from +5dB to -10dB, with 0dB representing unity gain. The DADM226-UWB is compatible with digital, hybrid, and analogue radio microphone receivers commonly available in the industry.

The DADM operates using a power source of 10-18 VDC, connected through a standard 4-pin HRS compatible connector at the DC input. It features six HRS DC output ports for powering auxiliary equipment, which can be turned on or off via the OLED menu. A green LED indicates the Power-On status of the system box, and the OLED display continuously shows the DC input voltage, functioning like a multi-meter.

Digitally tuned audio wireless and semi-broadband systems are the top choice for freelance sound engineers, rental companies, and major broadcasters in all wireless microphone applications.

Technical Specification:
