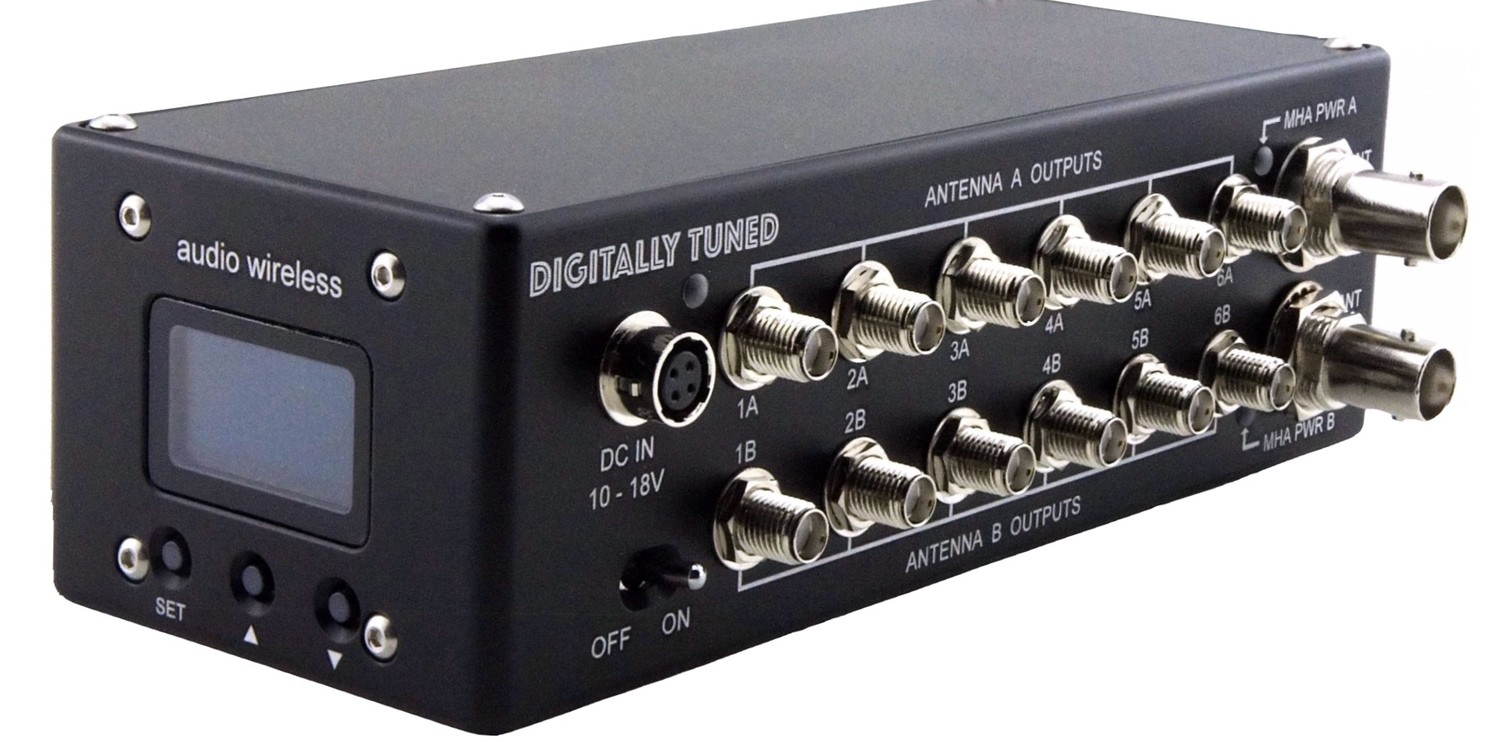

AW Digitally Tuned Diversity Antenna Distribution Module [DADM226-DT V2] (IN STOCK)

• NARROW BAND RF FILTERING for UTMOST PROTECTION
• PROTECT YOUR RECEIVING SYSTEM against UNWANTED and DIRTY RF SIGNALS
• Unwanted signals may be your own close by IEM Transmitters or Camera Hop Transmitters
• Dirty RF signals may be any unwanted signals from Walkie Talkie, TV CH signals or Video Transmitters

User selectable pre-programmed Digitally Tuned 24MHz Bandwidth frequency table:

BAND No:	FREQUENCY RANGE:	BAND No:	FREQUENCY RANGE:
1	470-494 MHz	15	582-606 MHz
2	478-502 MHz	16	590-614 MHz
3	486-510 MHz	17	598-622 MHz
4	494-518 MHz	18	606-630 MHz
5	502-526 MHz	19	614-638 MHz
6	510-534 MHz	20	622-646 MHz
7	518-542MHz	21	630-654 MHz
8	526-550 MHz	22	638-662 MHz
9	534-558 MHz	23	646-670 MHz
10	542-566 MHz	24	654-678 MHz
11	550-574 MHz	25	662-686 MHz
12	558-582 MHz	26	670-694 MHz
13	566-590 MHz	27	678-702 MHz
14	574-598 MHz

Digitally Tuned Diversity Antenna Distribution Module [DADM226-DT V2] offers the solution to the antenna and dc power distribution requirements for portable sound bag applications.

Custom designed for where the weight and size matter without sacrificing performance.

DT - Mode 1: Digitally tuned very selective RF Band-Pass filter in the frequency range 470-702MHz, tunable in 8MHz step, 24MHz window, with adjustable gain between +8dB to -8dB
WB - Mode 2: Fixed window semi-broadband band-pass filter 470-750MHz

TECHNICAL SPECIFICATION:
