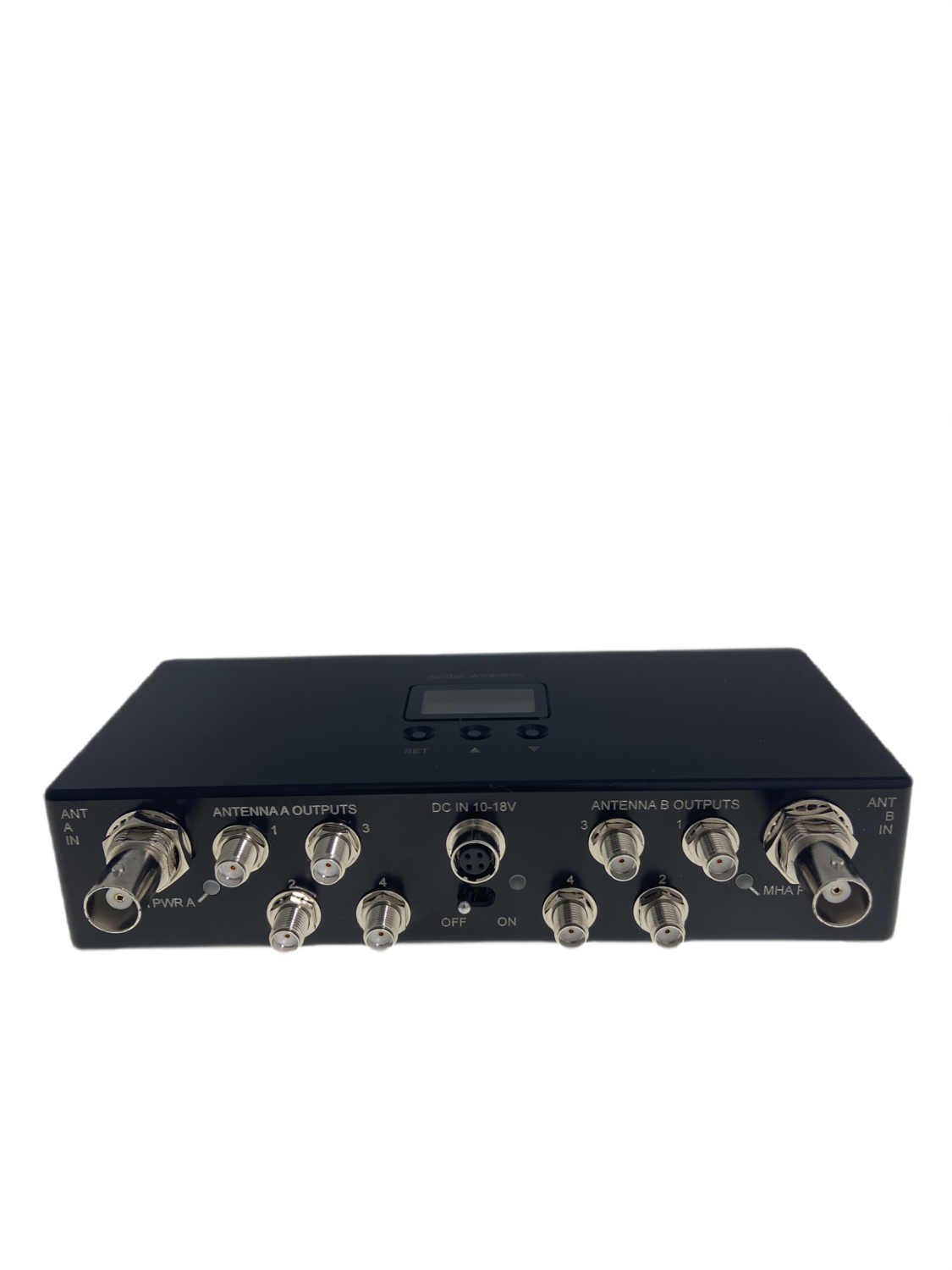

![4-WAY Diversity Antenna Distribution Module [DADM224-MK2] (SUPPLIED WITH RF CABLES IN STOCK)](https://d2j6dbq0eux0bg.cloudfront.net/images/12000241/2962176736.jpg "4-WAY Diversity Antenna Distribution Module [DADM224-MK2] (SUPPLIED WITH RF CABLES IN STOCK)")
DADM224-MK2
Protect the receivers against unwanted
interfering RF signal with the filtered design.
The DADM224-MK2 is a custom design that offers the solution to antenna distribution requirements for portable sound bags.
A unique custom design Antenna Distribution system offers excellent rejection for interference-free operation feeding up to four Diversity Receivers.
User-adjustable settings can be controlled via the intuitive OLED display menu to set system RF Gain, powering active antennas individually.
The DADM224-MK2 is a custom tuned filtered antenna distribution design for Diversity receiving system operating in the frequency range from 470 – 1164MHz(in bands). User adjustable system gain in 1dB steps to suit varying applications and suitable with all types of modulation techniques in the industry.
Uses industry standard connectors, 2 x BNC as Antenna inputs and 2x4 SMA Antenna output connectors with active antenna powering. DADM224-MK2 is a custom design, CNC machined aluminum box to withstand daily location work, finished in black anodizing with clear laser marked legends for long-term readability.
| RF Distribution Section | |
| Frequency Range | 470 to 1164MHz(in bands) |
| Input Impedance | 50 Ω |
| Output Impedance | 50 Ω |
| Gain (each output) | +6 dB to -10dB, user-adjustable |
| Current Consumption | 140mA at 14.0V dc |
| UHF Bandpass Type | |
| Available Bandwidths | 470-700MHz, 470-608MHz, 470-663MHz, 470-960MHz, 470-990MHz, 510-622MHz, 960-1164MHz (UK DME BAND), 470-1164MHz (Covers UK DME BAND) |
| OIP3 | > +41dBm |
| Port to port isolation | > 20dB (min.) |
| Noise figure | < 2 dB |
| Connections | |
| RF Inputs | 2 x 50 Ω Standard BNC Sockets |
| RF outputs | 2 x 4 x 50 Ω mini UHF SMA sockets |
| Main ON/OFF Switch | Master switch |
| Powering | |
| External Power | 10-18V dc |
| Remote Antenna Powering | Switchable dc T-bias powering, 12Vdc @ 250mA max, regulated for active antenna powering, short circuit protected |
| SUPPLIED RF LINK CABLES | |
| RF Inputs cables | 2 x 50 Ω Standard BNC Cables BNC-RA to BNC-S - 50cm |
| RF outputs cables | 2 x 4 x 50 Ω mini UHF SMA Cables SMA-RA to SMA-RA - 40CM |
