4-WAY Diversity Antenna Distribution Module [DADM224-MK2-P](SUPPLIED WITH RF CABLES - IN STOCK)

£550.00
Bandwidth Range
Please choose
In stock: 1 available
1
Share this product with your friends

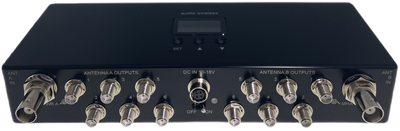

4-WAY Diversity Antenna Distribution Module [DADM224-MK2-P](SUPPLIED WITH RF CABLES - IN STOCK)
Product Details
Brand: Audio Wireless

DADM224-MK2-P

Protect the receivers against unwanted

interfering RF signal with the filtered design.

The DADM224-MK2-P is a custom design that offers the solution to antenna and power distribution requirements for portable sound bags.

A unique custom design for Antenna and DC Power Distribution system offers excellent rejection for interference-free operation feeding up to four Diversity Receivers.

User-adjustable settings can be controlled via the intuitive OLED display menu to set system RF Gain, powering active antennas, soft ON/OFF switching to turn each Hirose dc output individually.

The DADM224-MK2-P is a custom tuned filtered antenna distribution design for Diversity receiving system operating in the frequency range from 470 – 1164MHz(in bands). User adjustable system gain in 1dB steps to suit varying applications and type of modulation techniques.

Uses industry standard connectors, 2 x BNC as Antenna inputs and 2 x 4 SMA Antenna output connectors with active antenna powering. The four switchable DC Hirose power sockets supply dc power to sound bag or sound cart equipment. DADM224-MK2-P is a custom design, CNC machined aluminum box to withstand daily location work, finished in black anodizing with clear laser marked legends for long-term readability.

RF Distribution Section
Frequency Range 470 to 1164MHz(in bands)
Input Impedance 50 Ω
Output Impedance 50 Ω
Gain (each output)

+6 dB to -10dB, user-adjustable

Current Consumption 140mA at 14.0V dc
UHF Bandpass Type
Available Bandwidths

470-700MHz, 470-608MHz, 470-663MHz, 470-960MHz, 470-990MHz, 510-622MHz, 960-1164MHz (UK DME BAND), 470-1164MHz (Covers UK DME BAND)

OIP3 > +41dBm
Port to port isolation > 20dB (min.)
Noise figure < 2 dB
Connections
RF Inputs 2 x 50 Ω Standard BNC Sockets
RF outputs 2 x 4 x 50 Ω mini UHF SMA sockets
Main ON/OFF Switch Master switch
DC Power OUT (2 x 2) x 4-pin Hirose sockets individually fused and protected against reverse polarity.
Powering
External Power 10-18V dc
Remote Antenna Powering Switchable dc T-bias powering, 12Vdc @ 200mA max, regulated for active antenna powering, short circuit protected
Hirose dc output

Unregulated incoming volts, switched, individually fused, and protected against reverse polarity

Outer Case
Dimensions 158x68x34mm (W x H x D)
Weight 400g
SUPPLIED RF LINK CABLES

8 x SMA-RA to SMA-RA - 40cm
2 x BNC-RA to BNC-S - 50cm
