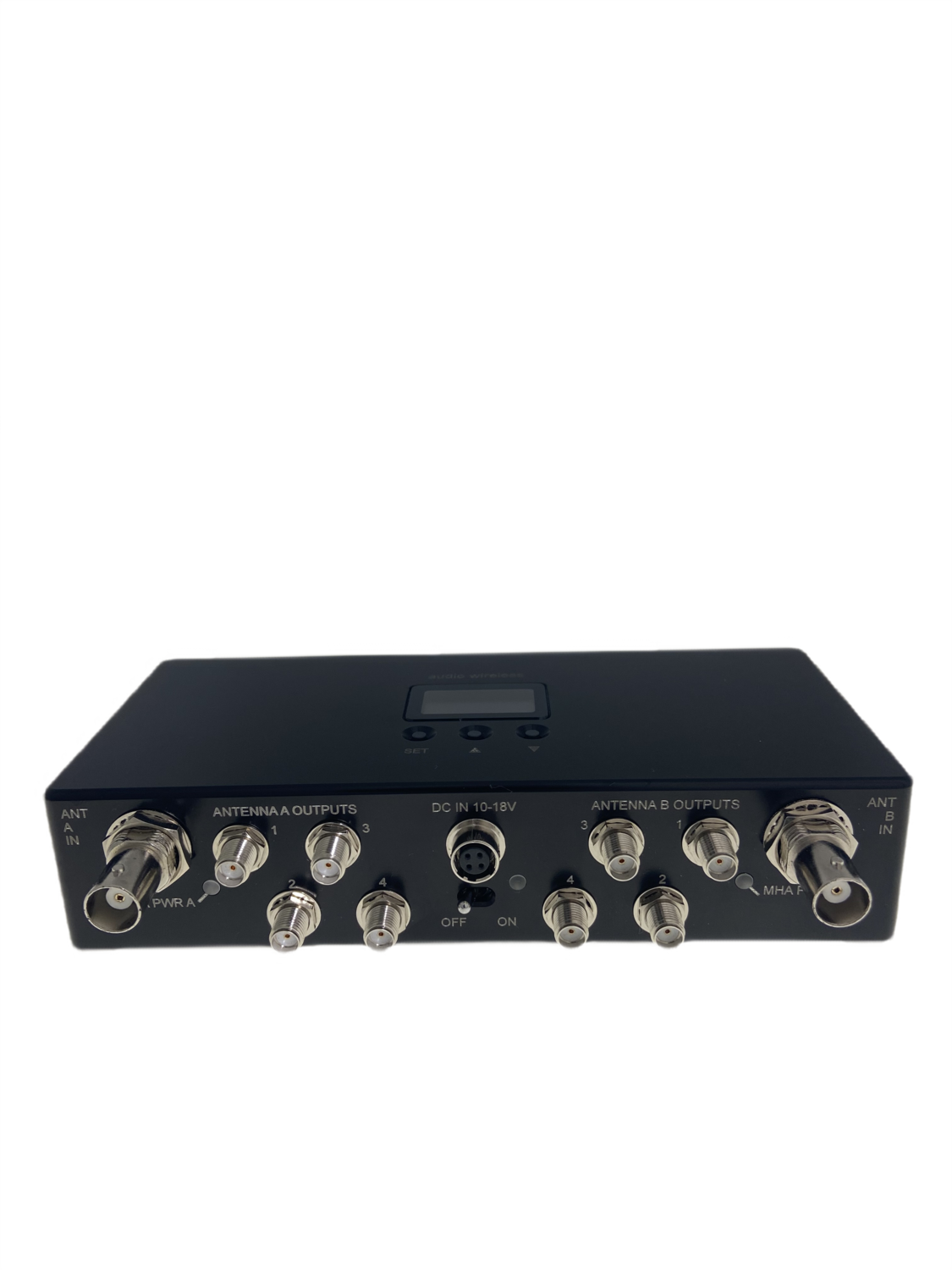

4-WAY Diversity Antenna Distribution Module DADM224-MK2 (IN STOCK)

DADM224-MK2

Protect your receivers against unwanted

interfering RF signal with the filtered design.

The DADM224-MK2 is a custom design with a highly selective Band-Pass Filter at the input to reject unwanted, dirty RF signals and only pass signals withing the custom tuned filter bandwidth, ideal for portable sound bags, cart and trolley applications.

A unique custom design Antenna Distribution system offers excellent rejection for interference-free operation feeding up to four Diversity Receivers.

User-adjustable settings can be controlled via the intuitive OLED display menu to set system RF Gain, powering active antennas individually.

The DADM224-MK2 is a custom tuned filtered antenna distribution design for Diversity receiving system, available frequency bands:

• 470-700MHz
• 470-608MHz
• 470-663MHz
• 470-960MHz

RF GAIN:

System RF Gain can be set in 1dB steps to suit individual application

INDUSTRY STANDARD CONNECTORS:

Antenna input uses 2 x BNC and 2x4 SMA Antenna output connectors with active antenna powering on demand.

CUSTOM DESIGN:

DADM224-MK2 is a custom design, CNC machined aluminum box to withstand daily location work, finished in black anodizing with clear laser marked legends for long-term readability.
