Key Features:
- Power Up to 1 Watt
Instantly boost low-power transmitters to a full 1W for long-range, reliable coverage. - 12-14 dB Gain
Clean, stable amplification with excellent gain flatness. - Ultra-Selective Band-Pass Filtering
Custom-tuned output filter for maximum signal purity and harmonic suppression. - Wide Frequency Options
Available in multiple UHF bands from 470 MHz to 960 MHz. - Adjustable Gain in 0.5 dB Steps
Fine-tune performance on the fly with an intuitive OLED display. - Built-In DC Voltmeter
Real-time voltage monitoring for peace of mind during critical events. - Lockable Settings
Prevent accidental changes with the secure Lock Menu. - Compatible with Any UHF Transmitter
Works with Hybrid FM, Analog FM and Digital Radio Mic transmitters across a wide input range (0 dBm to +18 dBm). - Rugged CNC-Machined Housing
Durable, black-anodized aluminium body designed for harsh environments. - Cool & Compact
Integrated heat-sink design and advanced PCB thermal optimisation for dependable performance.
The UHF AWPB-1W amplifier provides output power of up to 1 watt, featuring excellent gain flatness, a wide dynamic range, and a low noise figure. It is specifically designed to enhance low-power radio microphone transmitters, boosting them to a full 1 watt for applications such as sports audio links, car-to-car recording, in-ear monitor (IEM) transmitter range extension, and other long-range needs.
A custom-tuned, highly selective band-pass filter in the output stage defines the frequency range and effectively suppresses the second and third harmonics.
Available Frequency Bands:
- 470–700 MHz
- 470–865 MHz
- 500–960 MHz
The AWPB-1W is housed in a compact, custom-designed enclosure featuring an integrated heat sink and advanced PCB thermal design to reduce heat build-up. Its CNC-machined aluminium casing is black-anodized and laser-marked, ensuring durability and reliable performance in demanding environments.
| Technical Specification | |
| Maximum RF Output Power | 1Watt (+30dBm) |
| Gain | 12-14 dB user adjustable in 0.5dB steps (+13dB nom.) |
| Nominal RF output power |
0.8Watt (800mW)min. with TX output at 50mW (1 Watt nom.) |
| Adjustable Gain range | +12dB to 0dB, adjustable in 0.5dB steps |
| OIP3 |
> +48dBm |
| Noise Figure |
< 3 dB |
| Maximum input power |
+18dBm (63mW) at Gain setting 12dB |
| Frequency Bands available | 470-700MHz, 470-865MHz, 500-960MHz |
| Harmonic rejection | >30dB(min) |
| Connections | |
| RF Input | Standard BNC-F Socket, 50 Ω |
| RF output | Standard BNC-F Socket, 50 Ω |
| Hirose DC input | 4-pin Hirose (pins1+2: 0V, pins3+4: +ve) |
| Powering | |
| Operating voltage range | 10-18V, input reverse power, and short circuit protected |
| Current Consumption | 4.8W (max) |
| Main ON/OFF Switch |
2-way Toggle switch with Red LED - ON - indicator |
| Outer Case | |
| Dimensions | 137x58x28mm (W x H x D) (inc. BNC connectors) |
| Weight | 295g |

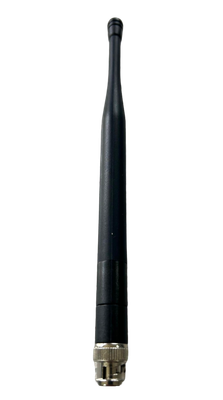

| Related Accessories | 1 x SMA to BNC-M link cables (custom lengths) 1 x BNC-M to BNC-M Antenna extension cables (custom lengths) 1 x QWA (Wide-Band Quarter Wave Antenna) (470-960MHz) 1 x LPDA-P Antenna (470-1525MHz) |
