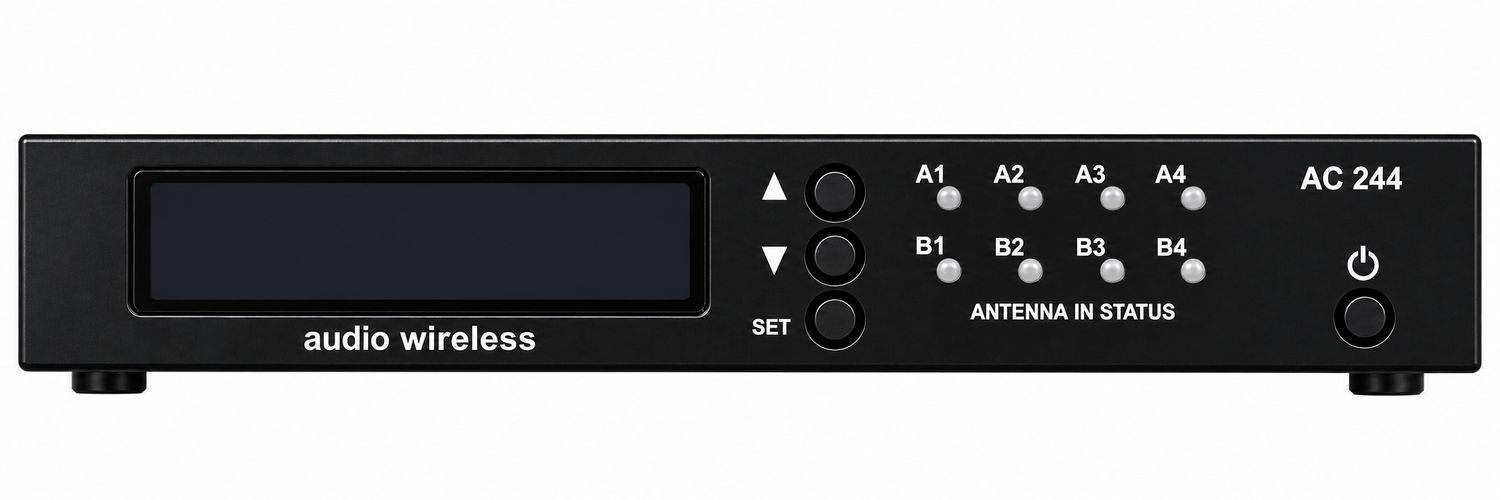

AC244 – 4-ZONE Antenna Combiner and Distribution System

COMING SOON

AC244 – 4-Zone Antenna Combiner and Distribution System

More antenna coverage. More control. One professional RF platform.

The Audio Wireless AC244 is a professional 4-Zone Antenna Combiner and Distribution System developed for demanding wireless microphone workflows where RF coverage must extend across multiple antenna positions while remaining centrally controlled.

The AC244 provides eight antenna inputs, arranged as A1–A4 and B1–B4, supporting a clear diversity A/B architecture. Combined RF is presented through two Side A distribution outputs and two Side B distribution outputs.

Front-panel OLED control gives the operator direct access to antenna input settings, distribution gain, Active Antenna Power, settings lock, DC voltage monitoring and system information.

Eight front-panel status indicators provide immediate visual confirmation of antenna-input activity and Active Antenna Power status.

Why 4-Zone?

Productions increasingly require antenna coverage in more than one or two physical locations. The AC244 allows antenna positions to be deployed around a film set, studio, venue, outside-broadcast compound or other complex RF environment, while the receiver and distribution system remain centrally located.

Four-zone capability gives the sound or RF engineer greater freedom to position antennas where coverage is actually required, while retaining central front-panel control of the system.

Key Features

• 4-Zone professional antenna combining architecture
• Eight antenna inputs: A1–A4 and B1–B4
• Two Side A and two Side B RF distribution outputs
• 50 Ω RF system with BNC connections
• OLED front-panel control
• Adjustable distribution gain: +10 dB to −21 dB in 1 dB steps
• Active Antenna Power control
• Eight front-panel antenna/AAP status indicators
• Settings LOCK function
• DC input voltage monitoring
• RF protection during abnormal DC supply conditions
• Stored operating configuration
• 10–18 V DC input

Typical Applications

The AC244 has been developed for professional wireless systems requiring flexible antenna placement and centrally managed RF distribution, including:

• Film and television production
• Location sound
• Outside broadcast
• Live events
• Rental RF systems
• Studios and theatres
• Fixed professional wireless installations

Technical Overview

System architecture: 4-Zone Antenna Combiner and Distribution System

Antenna inputs: A1, A2, A3, A4 / B1, B2, B3, B4

Distribution outputs: A OUT 1 & 2 / B OUT 1 & 2

RF impedance: 50 Ω

RF connectors: BNC

Gain adjustment: +10 dB to −21 dB in 1 dB user steps

User interface: OLED display with UP, DOWN and SET controls

Active Antenna Power: User controlled from the front-panel menu

DC monitoring: Real-time DC input voltage monitoring

DC input: 10–18 V DC

DC connector: 4-pin Hirose connector

Frequency Configurations

The AC244 is being developed to support a range of professional UHF operating configurations for different wireless applications and regional requirements.

For specific frequency requirements or information about the forthcoming AC244 configurations, please contact Audio Wireless.
